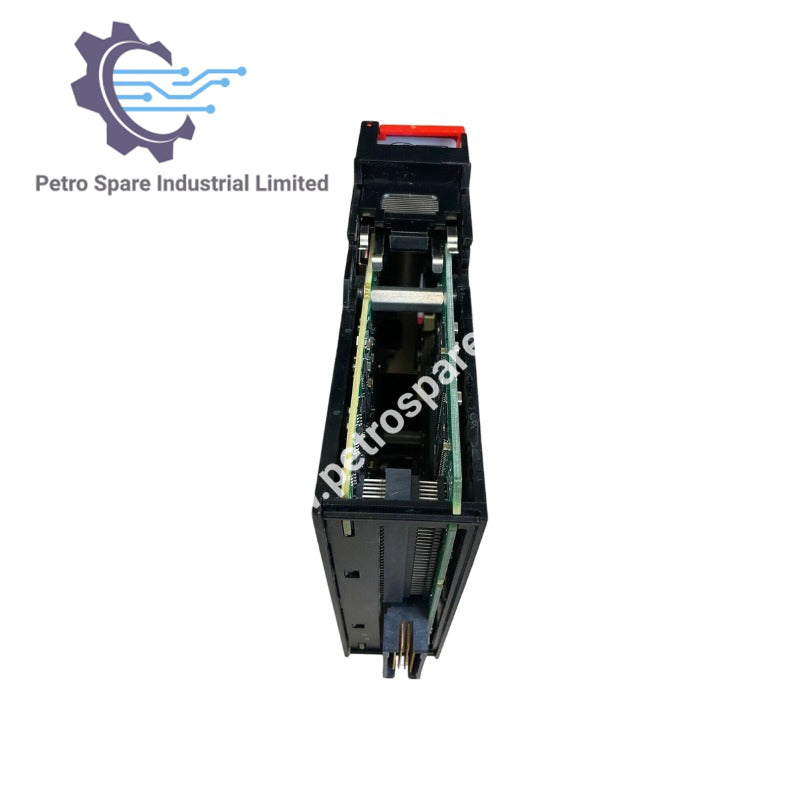

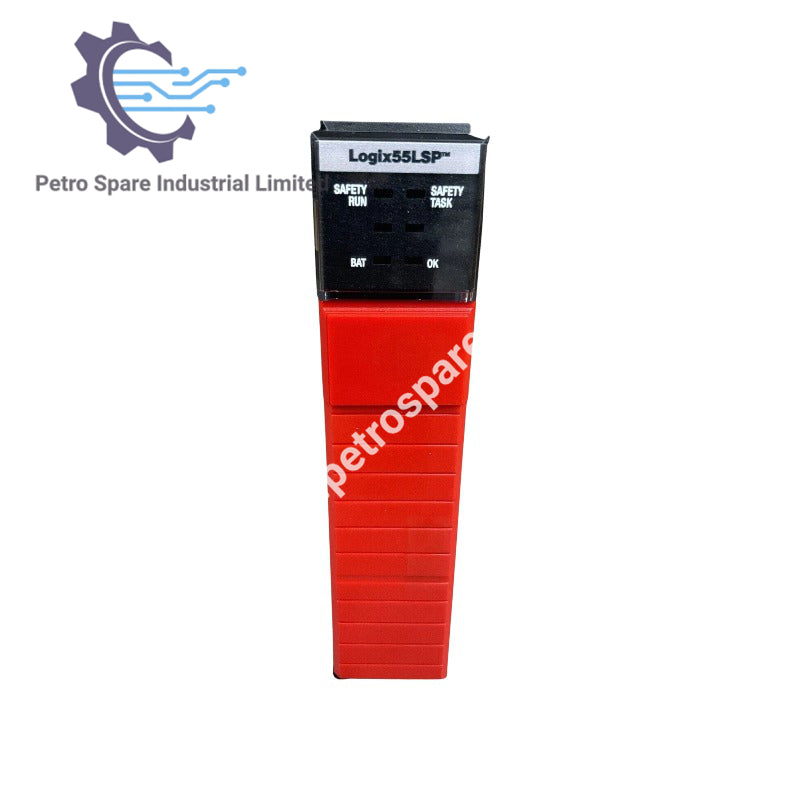

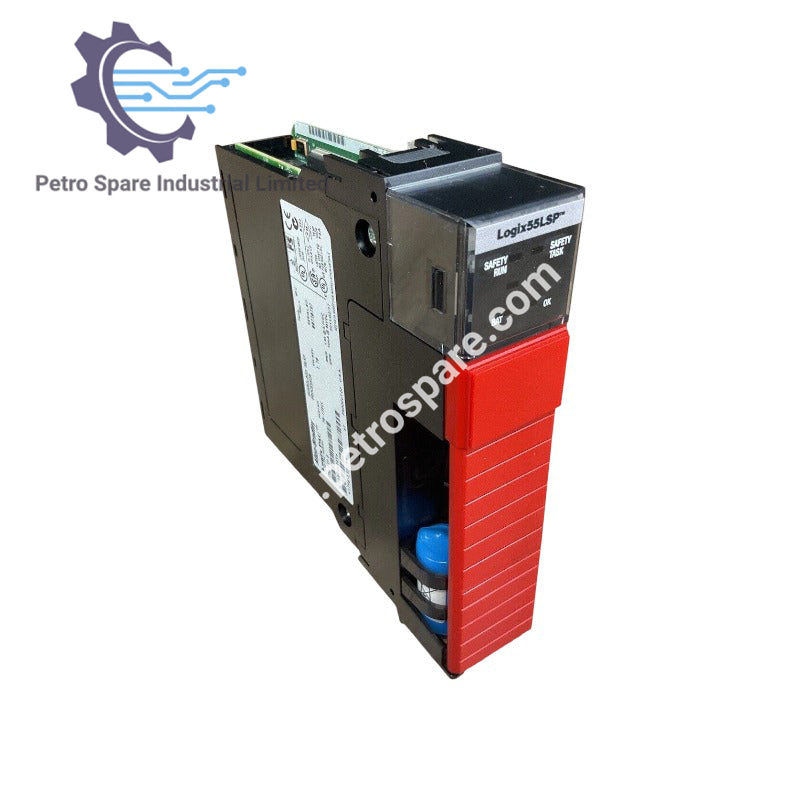

1756-LSP

Overview

• Product type designation: GuardLogix Safety Partner Module
• Model: 1756-LSP
• Description: Safety partner module for GuardLogix 5560 systems, used with compatible primary controllers
• Module type: Safety Partner module
• Series: GuardLogix 5560
• Compatible primary controllers: 1756-L61S, 1756-L62S, 1756-L63S
• Safety memory: Depending on the installed primary controller
• Slot width: 2 (primary and partner modules needed; each occupies one slot)
• Enclosure: None (open-style)

Power and Dissipation

• Current draw @ 5.1V DC: 1,200 mA
• Current draw @ 24V DC: 14 mA
• Power dissipation: 3.5 W
• Thermal dissipation: 11.9 BTU/hr
• Isolation voltage: 30V continuous

Battery

• Replacement battery: 1756-BA2 (0.50 g lithium)

Compatible Chassis

• 1756-A4, 1756-A7, 1756-A10, 1756-A13, 1756-A17

Compatible Power Supplies (Standard)

• 1756-PA50, 1756-PA72, 1756-PA75, 1756-PB50, 1756-PB72, 1756-PB75

Physical Specifications

• Weight: 0.75 lbs (0.34 kg)

---
