1756-IF8IHK

Product Overview

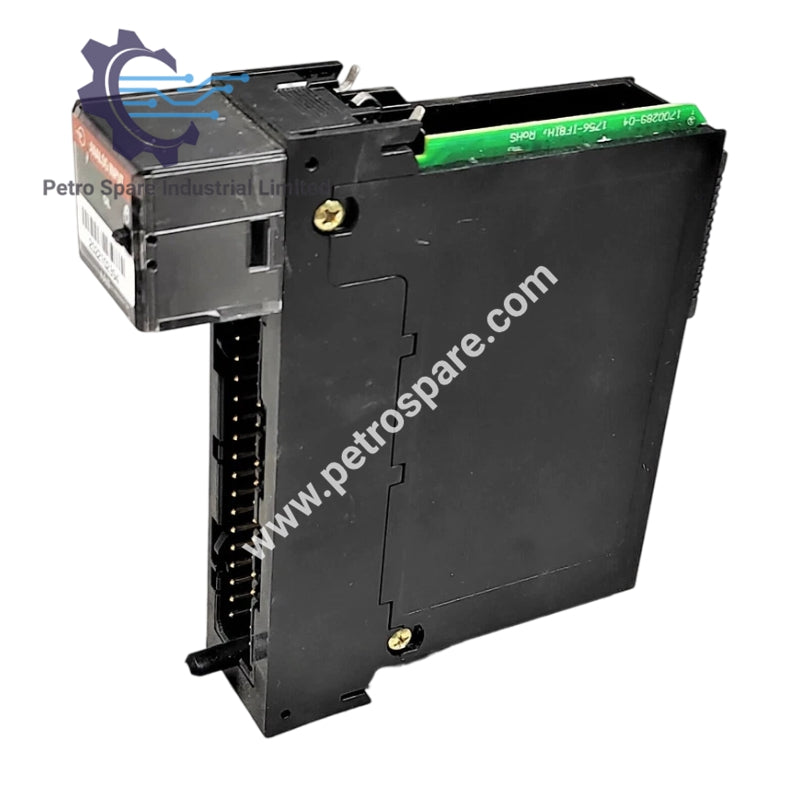

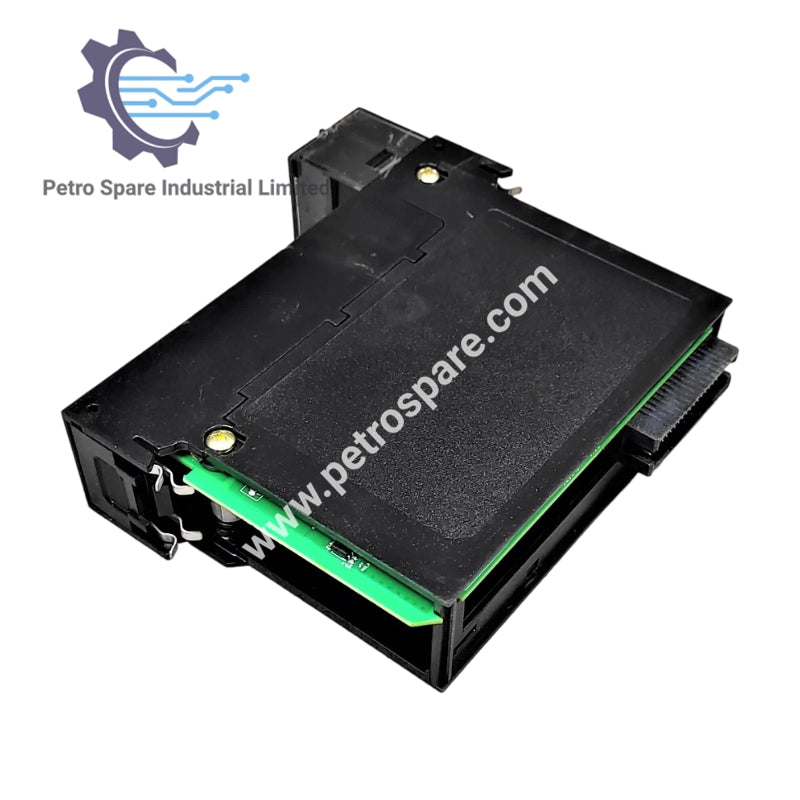

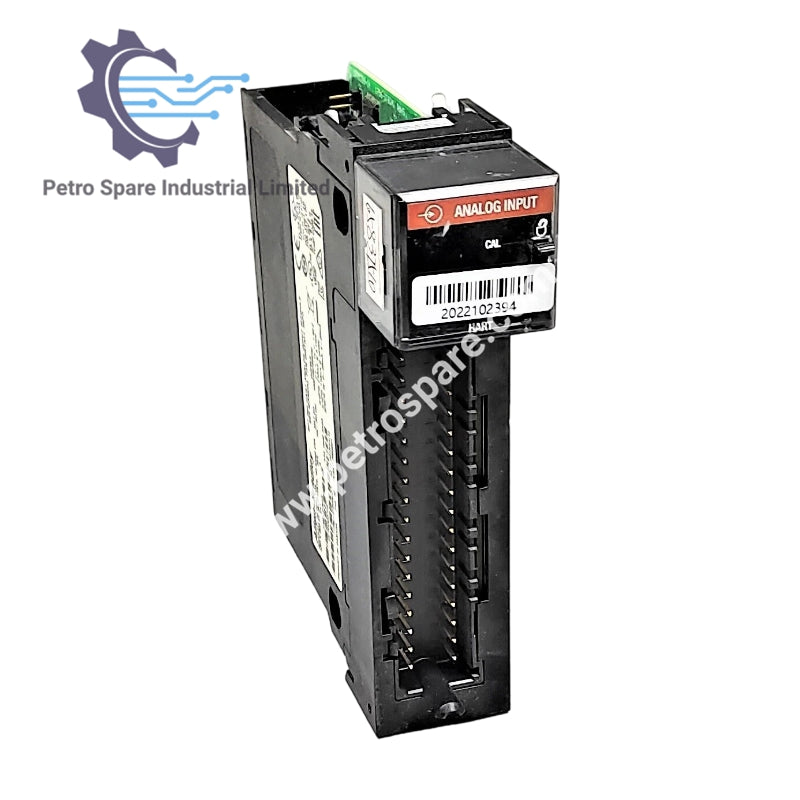

The 1756-IF8IHK is an analog input module from Allen Bradley's ControlLogix series, engineered for precision measurement.

Technical Specifications

• Resolution Rating: 24-bit

• Accuracy Rating: 0.05% at 25°C

• Conversion Method: Sigma-Delta conversion

• Module Error: 0.10%

• Scan Time: 1 ms

• Number of Channels: 8 individually isolated channels

• Input Voltage Range: 0 to 10 V

• Input Current Range: 0 to 20 mA

• Sourcing Voltage: 20 VDC to 36 VDC

• Backplane Current Draw: 150 mA at 24 VDC

• Power Dissipation: 4.6 W in voltage mode

• Thermal Dissipation: 15.7 BTU/hr (Voltage mode)

• Isolation Voltage: 250 V
