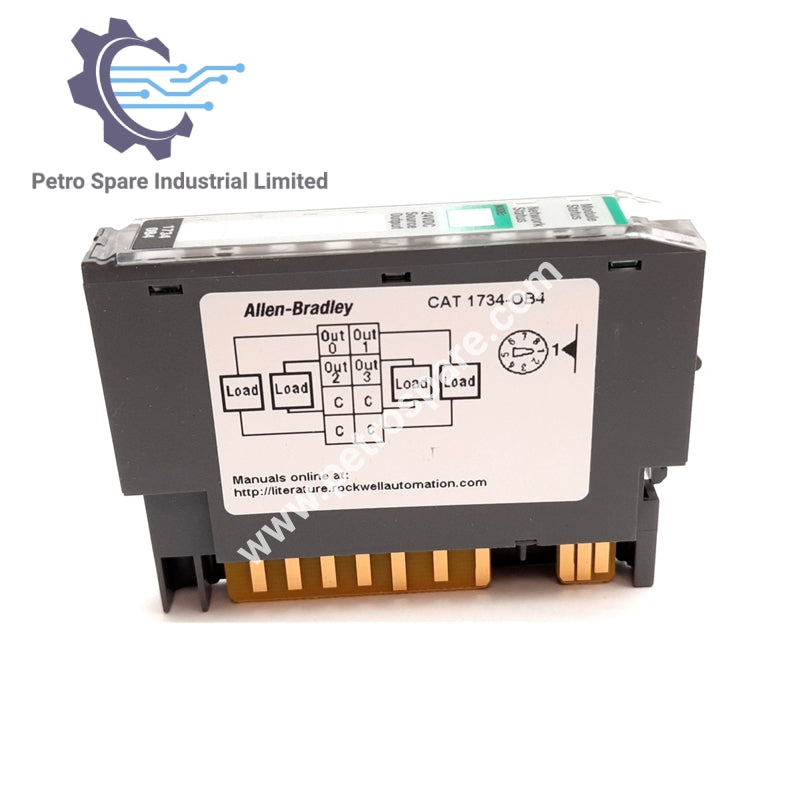

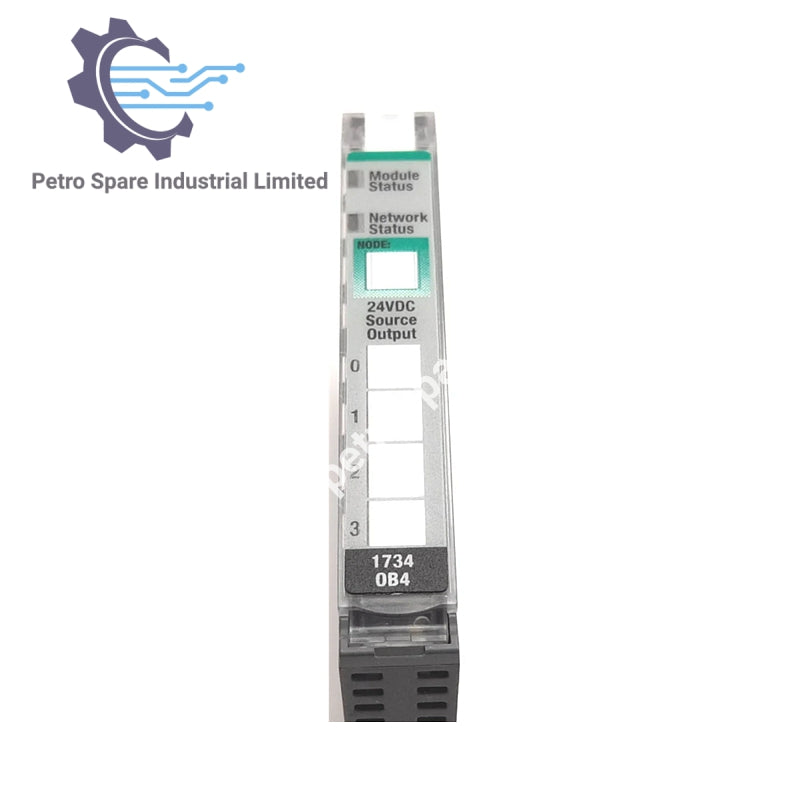

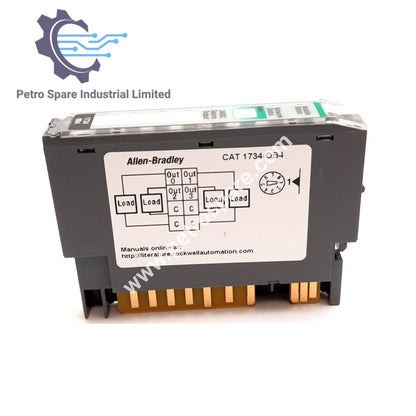

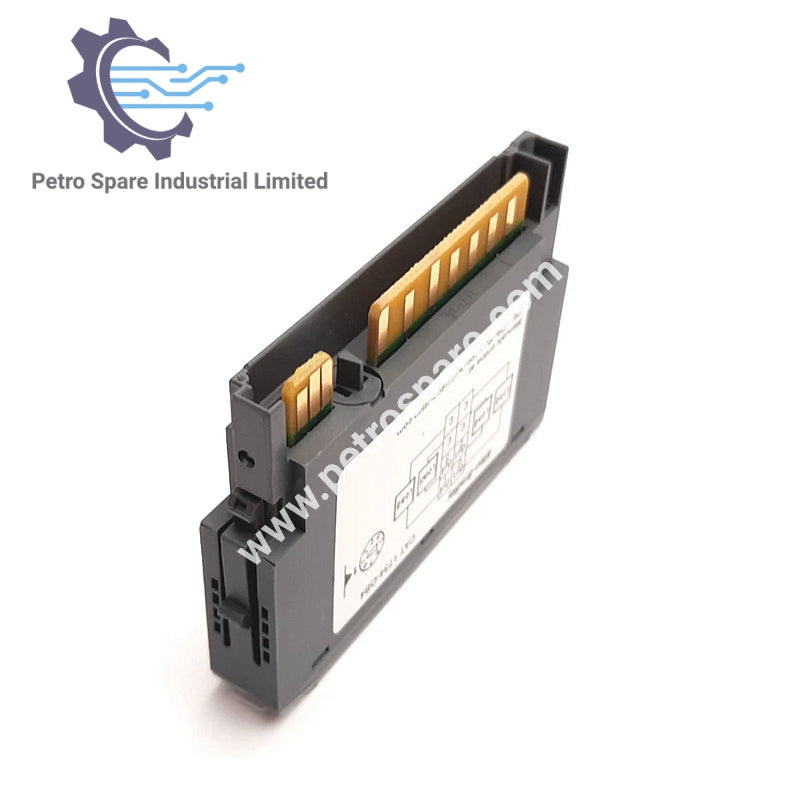

1734-OB4

Overview

The 1734-OB4 Allen-Bradley Point I/O Digital DC Sourcing Output Module is a reliable solution for digital output applications.

General Specifications

• Weight: 0.13 lbs (0.06 kg)
• Series: POINT I/O
• Module Type: Digital DC Sourcing Output Module
• Outputs: 4
• Output Voltage: 24 V DC
• Electronically Protected: Yes
• Message Size: 1 Byte
• Wiring Base Assembly: 1734-TB or 1734-TBS

Electrical Specifications

• POINTBus Current: 75 mA
• Output Current: 3 amps/module
• Power Dissipation: 1.2 W
• Thermal Dissipation: 4.1 BTU/hour

Indicators

• Output Status: 4 yellow indicators
• Module/Network Status: 2 green/red indicators

---
