1606-XLE240E-3

Overview

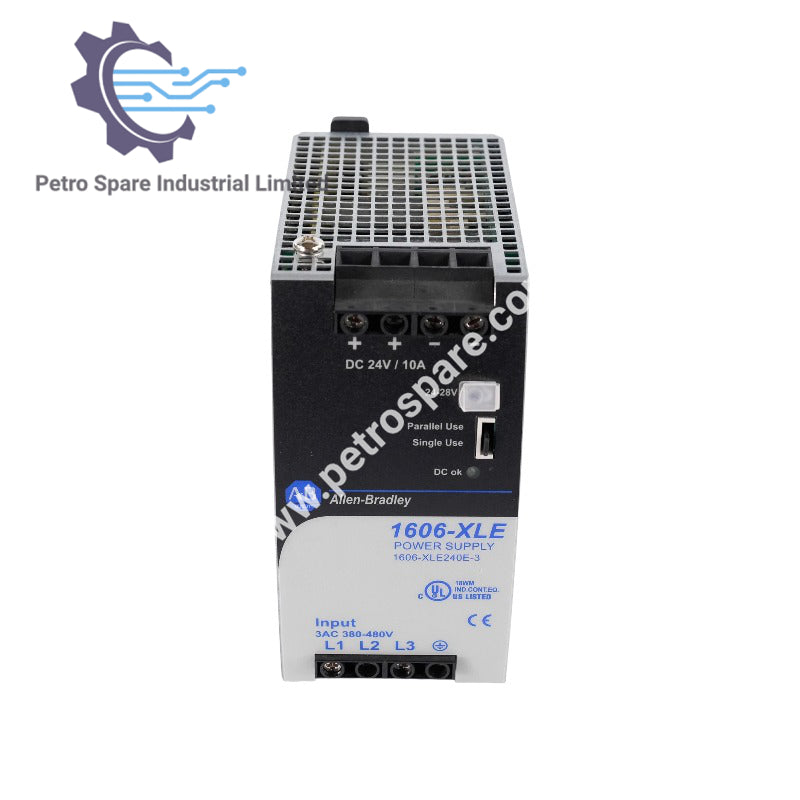

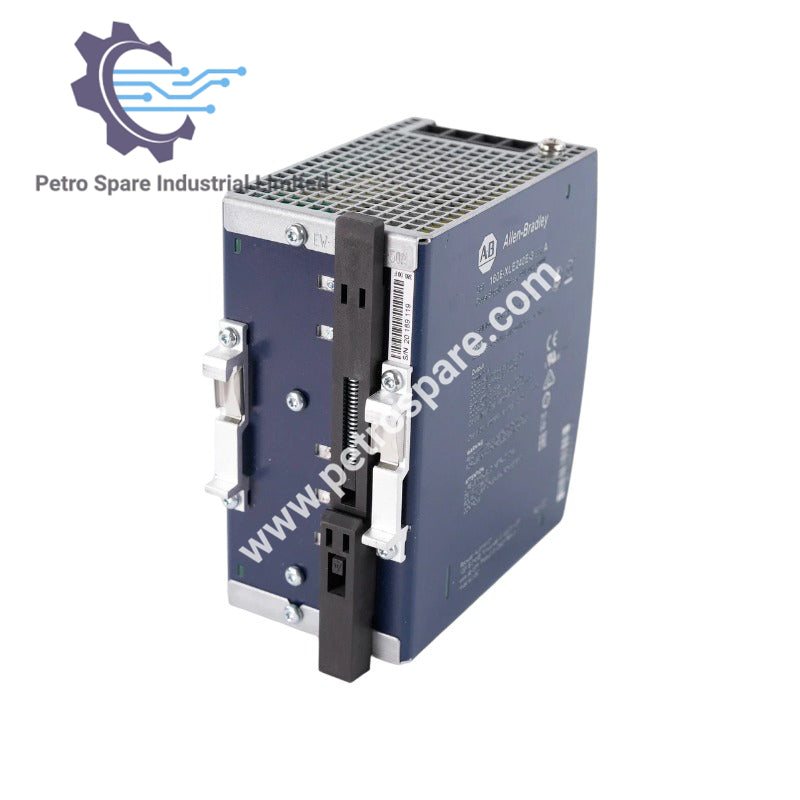

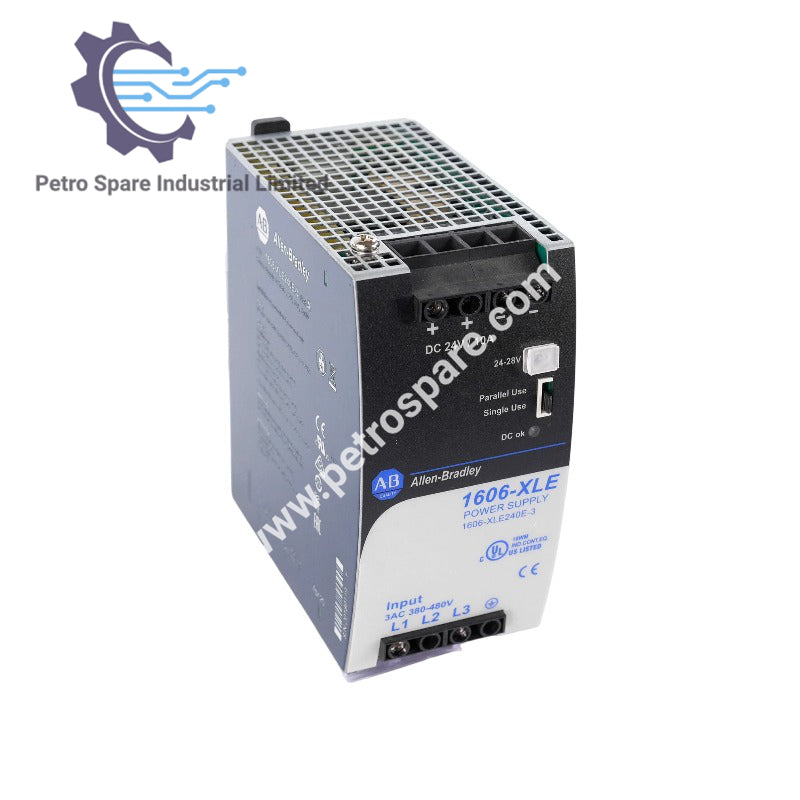

The Allen‑Bradley 1606-XLE240E-3 is a three‑phase switched mode power supply for industrial power distribution and protection applications.

Input Specifications

• Input type: AC, 3‑phase.
• Input frequency: 47...63 Hz (nominal 50/60 Hz).
• Input voltage (AC): 380V min, 480V max.
• Nominal voltage (AC, L‑L): 230V.
• Inrush current (max): 4A.

Output Specifications

• Output voltage (DC): 24V min, 28V max.
• Output current (rated rms): 10A.
• Output current: 10A @ 24V DC; 8.6A @ 28V DC.
• Rated power (real): 240W.
• Ripple voltage (P‑P max): 50 mVpp.
• Hold‑up time (min): 34 ms.

Efficiency & Reliability

• Efficiency (min): 92%.
• MTBF (min): 700,000 hours.

Indicator & Mounting

• Indicator type: LED.
• Mounting: DIN‑35 Rail Mount.
• IP rating: IP20.

Temperature Ranges

• Operating temperature: –25°C min, +70°C max.
• Storage temperature: –40°C min, +85°C max.

Dimensions & Weight

• Height: 124 mm.
• Width: 40 mm.
• Depth: 117 mm.
• Weight: 0.75 kg.

---
