1606-XLE120E

Overview

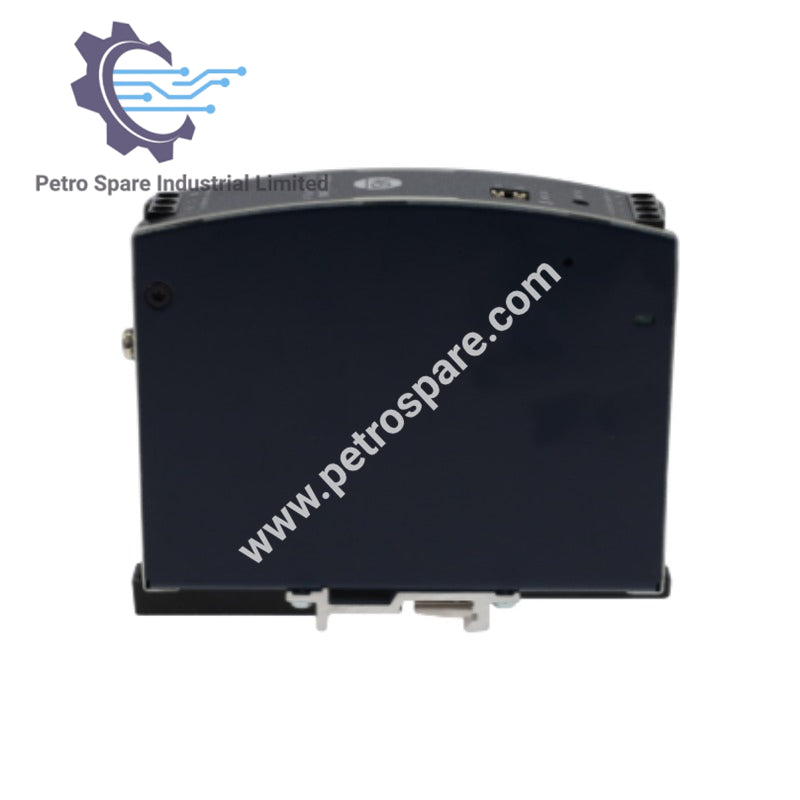

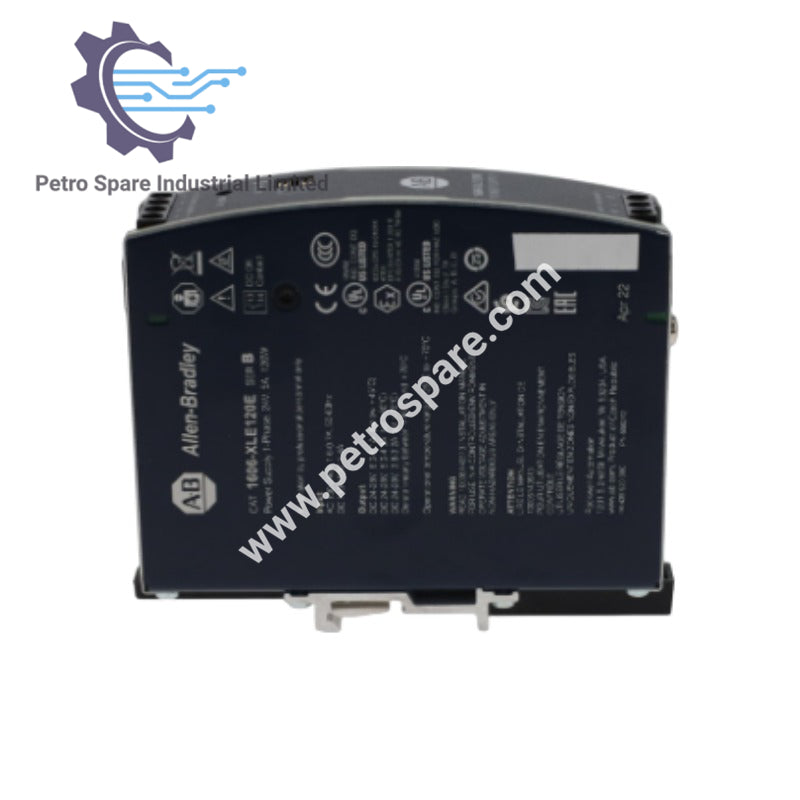

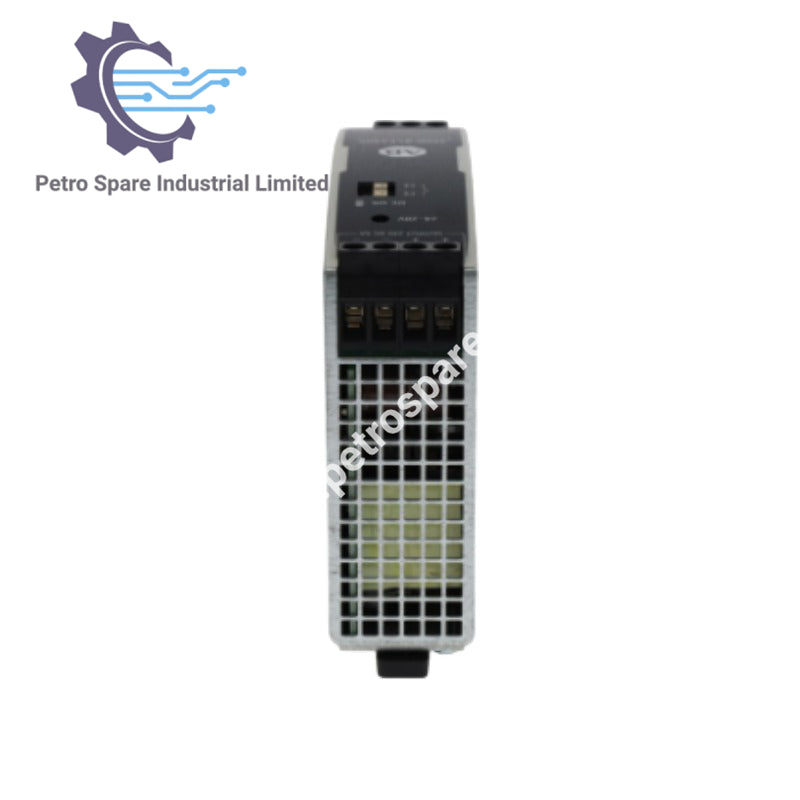

1606-XLE120E Allen-Bradley Single-Phase Input Power Supply is a compact DIN rail-mounted supply delivering regulated 24 VDC output for industrial automation systems, ideal for small-to-medium loads.

Electrical Ratings

• Output Voltage: DC 24 V (adjustable 24–28 V)

• Output Current:

  • 5–4.3 A (ambient < 60 °C)

  • 6–5.1 A (ambient < 45 °C)

• Output Power:

  • 120 W (ambient < 60 °C)

  • 144 W (ambient < 45 °C)

• Output Ripple: < 50 mVpp (20 Hz–20 MHz)

Input Ratings

• Input Voltage AC: 100–120 / 200–240 V (auto-select)

• Line Frequency: 50–60 Hz ±6%

• AC Input Current (typical): 2.05 A @ 120 V / 1.23 A @ 230 V

• Power Factor (typical): 0.56 @ 120 V / 0.47 @ 230 V

• AC Inrush Current (typical): 3 A peak

• DC Input: Not allowed

Efficiency And Losses

• Efficiency (typical): 89.4% @ 120 V / 90.2% @ 230 V

• Losses (typical): 14.5 W @ 120 V / 13.2 W @ 230 V

Environmental Ratings

• Operating Temperature Range: -25 °C to +70 °C

• Derating: 3 W/°C from +60 °C to +70 °C

• Hold-up Time (typical): 80 ms @ 120 V / 78 ms @ 230 V

Mechanical Ratings

• Dimensions (W × H × D): 32 × 124 × 117 mm

• Mounting: DIN rail

---
