140SDO95300S

Overview

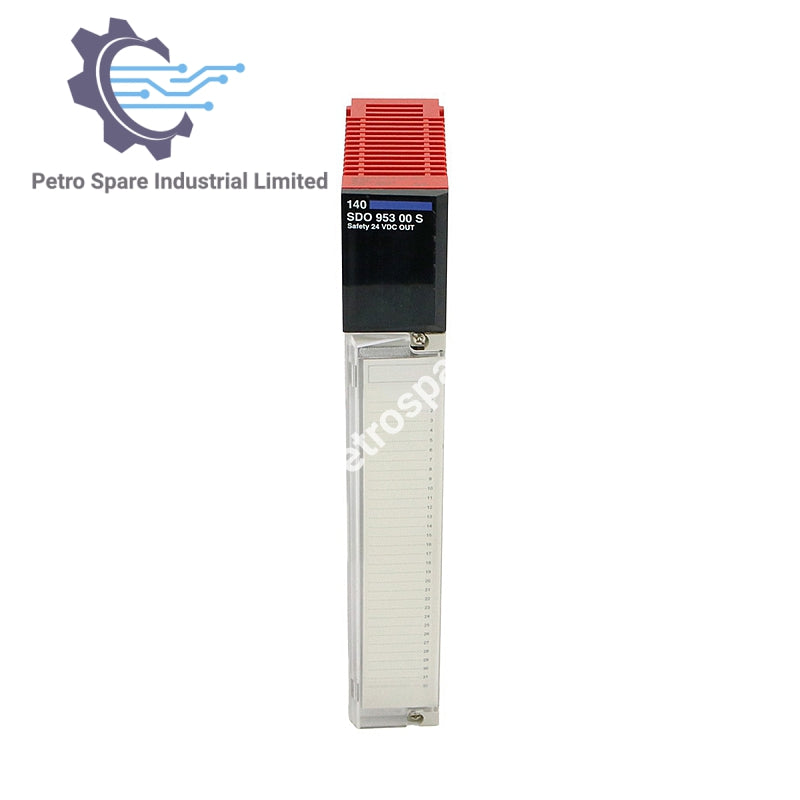

140SDO95300S is a Schneider Modicon Quantum safety DC discrete output module with 16 outputs, operating at 19.2–30 V DC.

Output Configuration

• Discrete Outputs: 16

• Groups of Channels: 1

• Output Logic: Positive logic (source)

• Addressing Requirement: 4 output words, 7 input words

• Output Voltage: 19.2–30 V DC (max 34 V)

• Maximum Voltage Drop: <0.3 V at 0.5 A

• Sensor Power Supply: 19.2–30 V

• Maximum Load Current: ≤0.65 A per point, ≤10.04 A per group

• Surge Current: 2 A for 10 ms

Performance & Protection

• Response Time: ≤20 ms (state 0 ↔ state 1)

• Maximum Leakage Current: 0.5 mA at 30 V

• Protection Type: With protection

• Load Inductance: 0.5 / (I² × switching frequency)

• Fault Indication: Channel fault, overload, power supply fault, system fault

• Associated Fuse Rating: 10 A

• Isolation: 1500 Vrms for 1 minute (between channels and bus, and group and bus)

• Power Dissipation: 1.9 W + 0.65 I²

Signaling & Compliance

• Local Signaling:

• 1 green LED for bus communication (Active)

• 1 red LED for external fault detected (F)

• 16 green LEDs for output status

• 16 red LEDs for system failure/internal channel fault

• Bus Current Requirement: 350 mA

---
