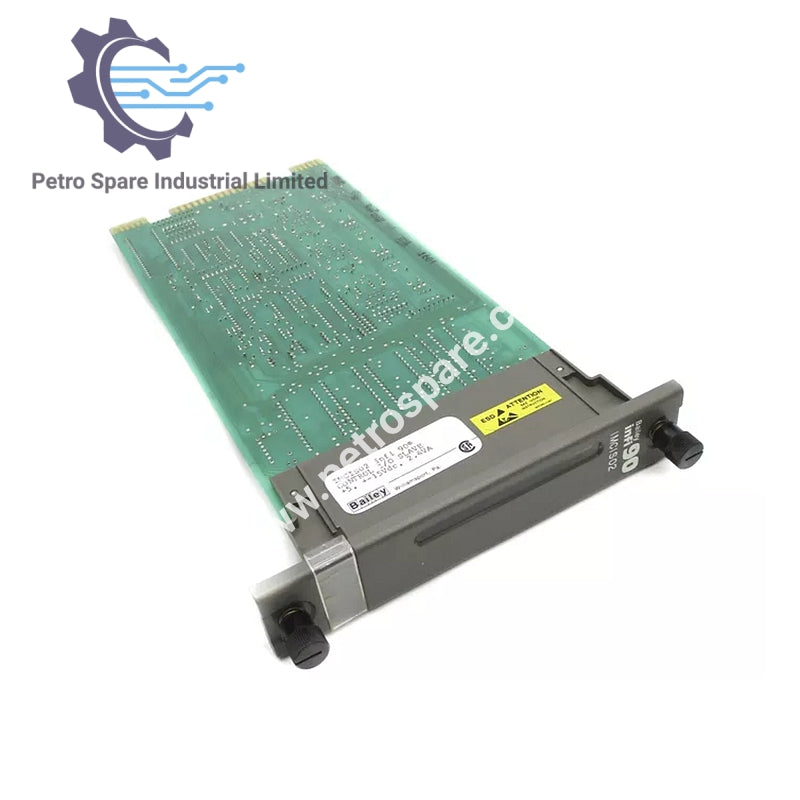

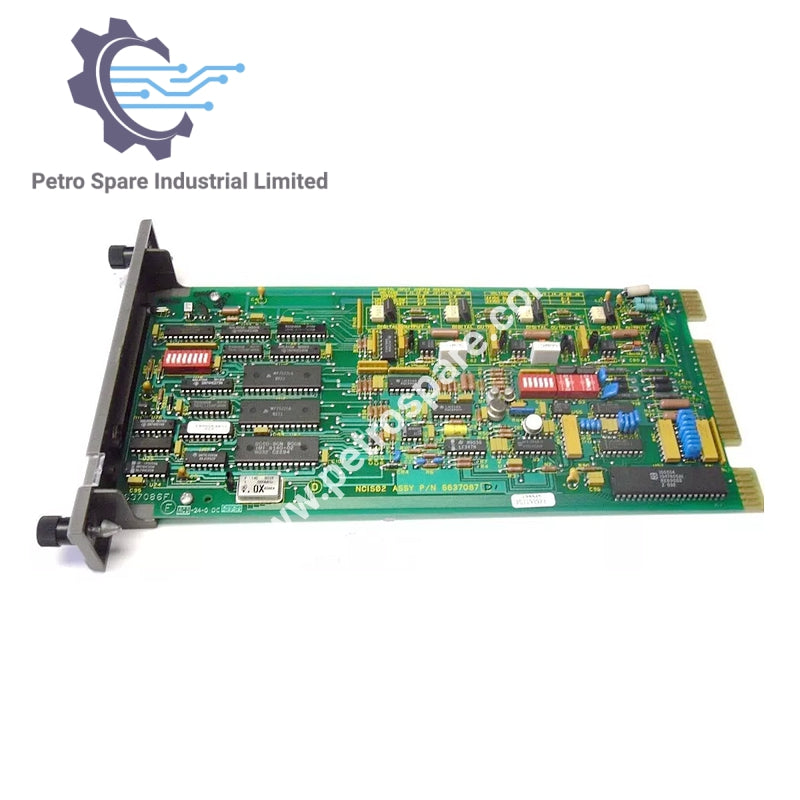

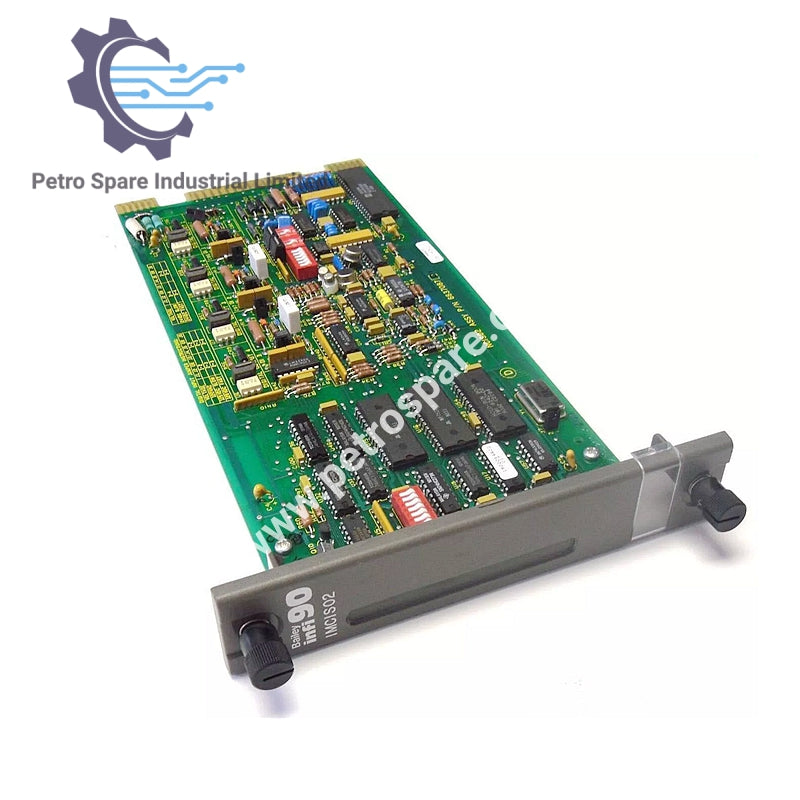

IMCIS02

Ikhtisar

• Model: IMCIS02

• Tipe: Modul Slave I/O Kontrol

• Produsen: ABB

Persyaratan Daya

• Tegangan:

• +5 VDC (±5%)

• +15 VDC (-2,5%, +5%)

• -15 VDC (-5%, +2,5%)

• +24 VDC (±10%) dari unit/modul terminasi

• Arus (Maksimum):

• 332 mA (+5 VDC)

• 35 mA (+15 VDC)

• 30 mA (-15 VDC)

• 50 mA (+24 VDC)

• Disipasi:

• 1,65 W (@ +5 VDC)

• 525 mW (@ +15 VDC)

• 450 mW (@ -15 VDC)

• 1,20 W (@ +24 VDC)

I/O Digital

• Input Digital:

• 24 VDC (±10%)

• 125 VDC (±10%)

• 120 VAC (±10%)

• 4,5 mA @ 24 VDC

• 5,0 mA @ 125 VDC

• 7,0 mA @ 120 VAC rms @ 60 Hz

• (3) Terisolasi secara optik

• Arus (Tipikal):

• Tegangan:

• Keluaran Digital:

• (4) Open collector, terisolasi secara optik

• Tegangan Output Mati: VI/O Nominal 24 VDC

• Tegangan Output Nyala: Maks 2,4 VDC

• Arus Output Mati: Maks 10 µA

• Arus Output Nyala: Maks 250 mA

---
