531X306LCCBFM1

Product Overview

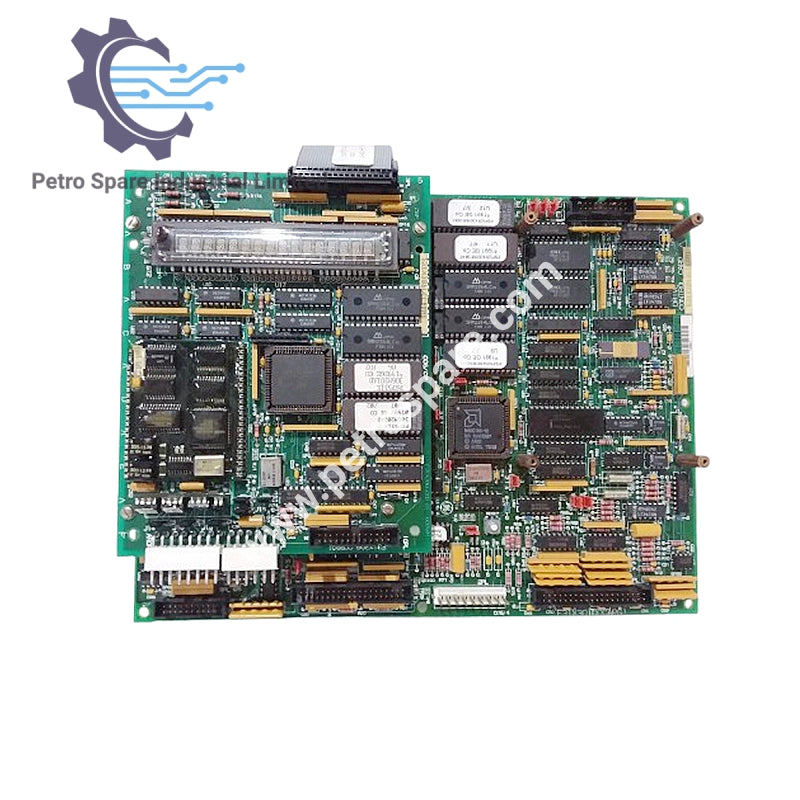

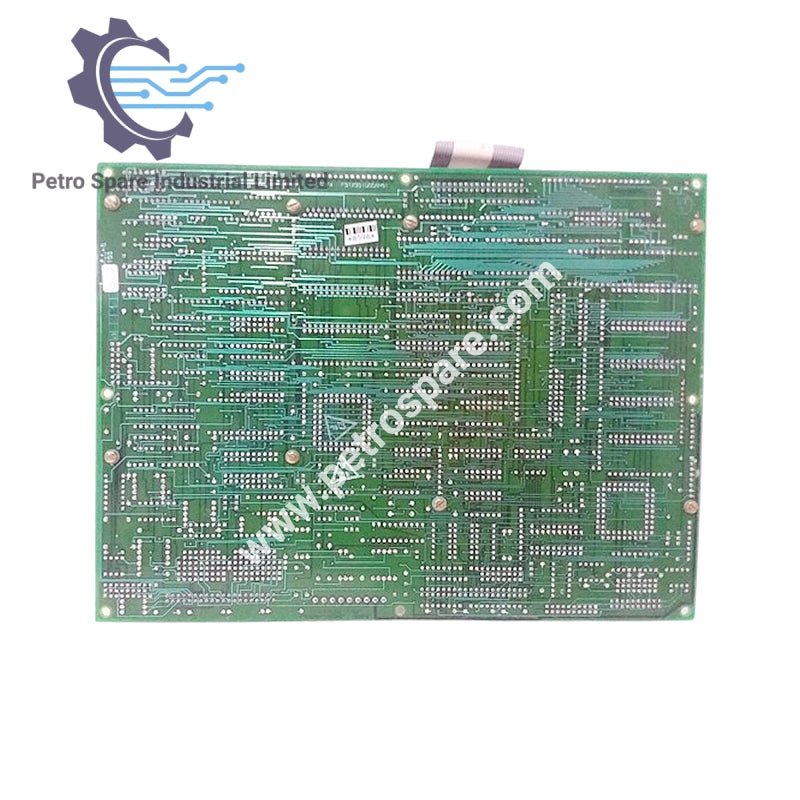

531X306LCCBFM1 is a Drive Display Card manufactured by General Electric, featuring a 16‑slot LED faceplate for numeric indication and designed for reliable integration with GE drive systems.

LED & Display

• Faceplate: 16 LED slots, each capable of illuminating with its own number

• Alignment: Edge markings with numbers (1–5) and letters (A–F) for proper positioning

Circuit Components

• Jumper pins: Allow opening/closing of smaller circuits using caps

• Capacitors: Store energy in electrical fields for later use

• Resistors: Dissipate energy as heat when required

• Transistor: Amplifies signals within the circuit board

• Crystal oscillator: Provides precise frequency for stable circuit operation

Connectivity

• Terminals: Two black encased male terminals and two white exposed male terminals

• Mounting: 10 securing holes for installation

---
