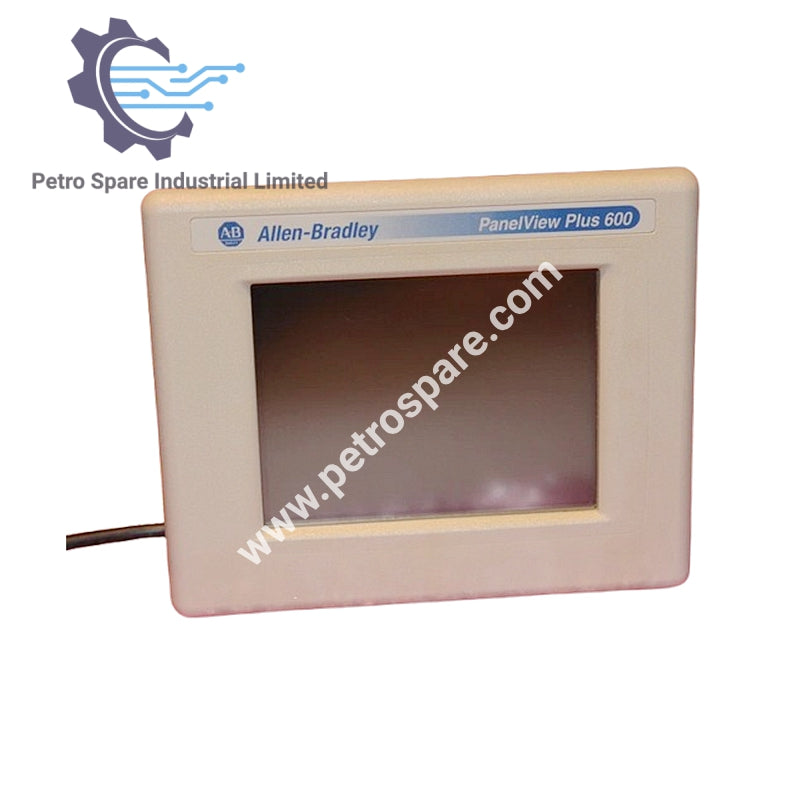

2711P-T6C20D

Product Overview

• Model: 2711P-T6C20D

• Manufacturer: Allen-Bradley (Rockwell Automation)

• Product Family: PanelView Plus Operator Terminals

• Module Type: Operator interface terminal (HMI)

Display Specification

• Display Size: 5.5 in. (listed), 5.7 in. color (catalog specification)

• Display Type: Color active matrix TFT LCD

• Display Area: 112 × 84 mm (4.4 × 3.3 in.)

• Resolution: 320 × 240 pixels

• Backlight: CCFL, 50,000 hours minimum life

• Touch Technology: Analog resistive touchscreen

Communication & Interfaces

• Integrated Ports: RS-232, Ethernet, Remote I/O, USB

• Communication Methods: RS-232, USB, dual Ethernet ports

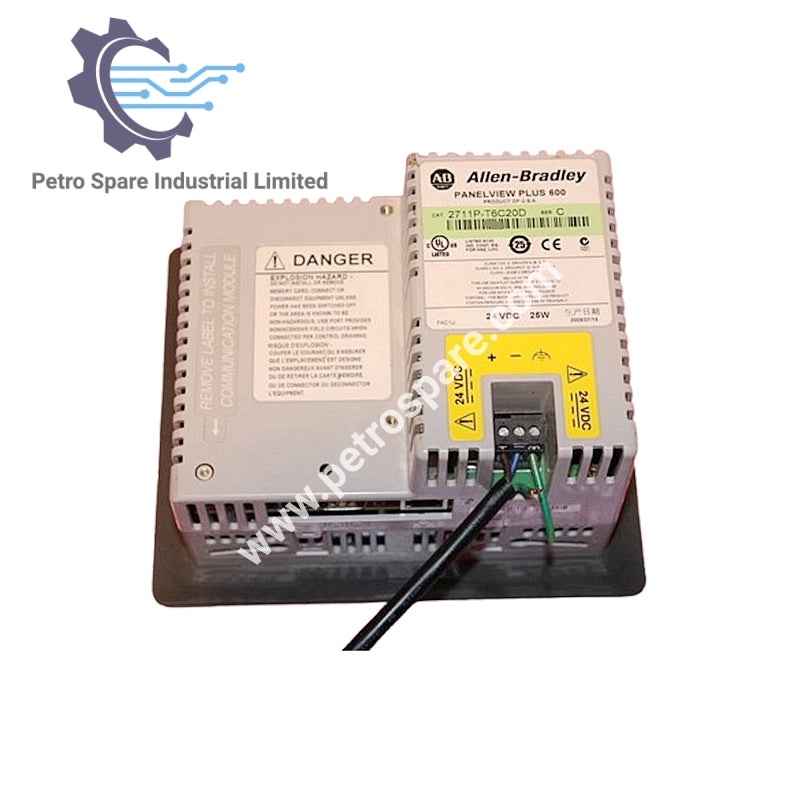

Electrical Specification

• Input Voltage Range: 18–32 V DC

• Nominal Power Supply: 24 V DC

• Power Consumption: 25 W

Memory Specification

• Application Flash Memory: 20 MB

Mechanical & Environmental Specification

• Peak Vibration Resistance: 2G

• Format: Panel-mounted operator interface terminal

---
