140NOE77110

Overview

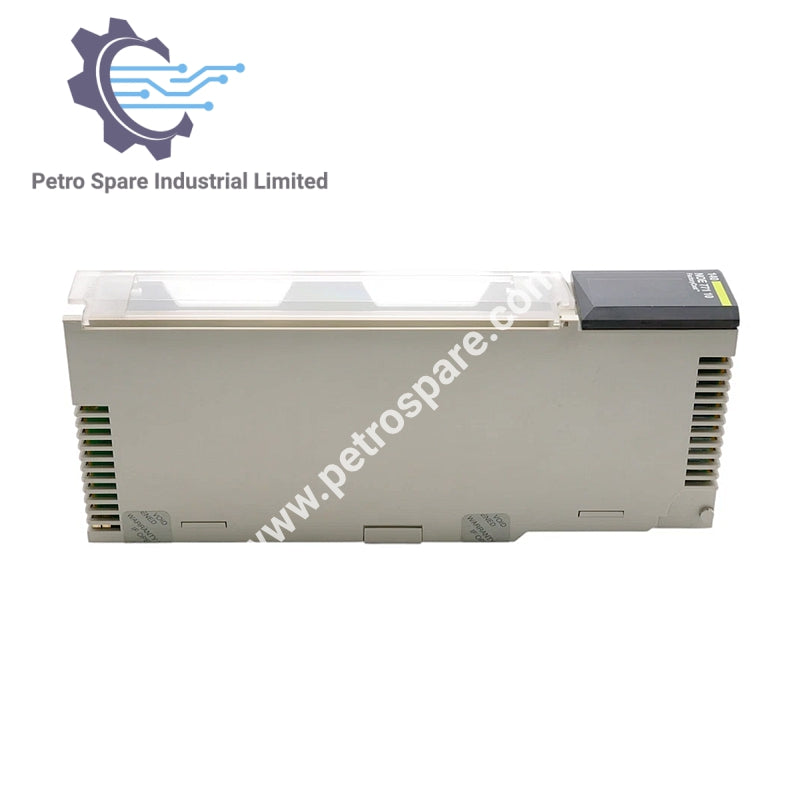

140NOE77110 is a Schneider Ethernet Network TCP/IP Module for the Modicon Quantum platform, providing high-speed, redundant Ethernet communication for industrial automation systems.

General Information

• Manufacturer: Schneider

• Model number: 140NOE77110

• Product type: Ethernet Network TCP/IP Module

• Platform: Modicon Quantum

• Concept: Transparent Ready, FactoryCast configurable

• Module format: Standard

• Net weight: 0.345 kg (0.761 lb)

• Current consumption: 750 mA @ 5 V DC

• Marking: CE

Communication & Protocols

• Communication service: SNMP network management, Modbus TCP messaging

• Protocol: Ethernet Modbus TCP/IP

• Physical interfaces:

• MT/RJ: 100BASE-FX fiber optic

• RJ45: 10BASE-T / 100BASE-TX twisted pair

• Transmission rate: 10/100 Mbit/s

• Redundancy: Hot standby architecture

Features & Web Services

• Web server: Yes

• Web services: Data editor, Rack viewer

• Class: C20

Status Indicators

• LEDs:

• Data rate (10/100 Mbps)

• Collision detection

• Download mode (Kernel)

• Ethernet module fault

• Ethernet network status (RUN)

• Full-duplex mode (Fduplex)

• Module ready

• Network active (Link)

• Rack operational (Active)

• Transmission/reception activity (TxAct/RxAct)

---
