51309355-001

Overview

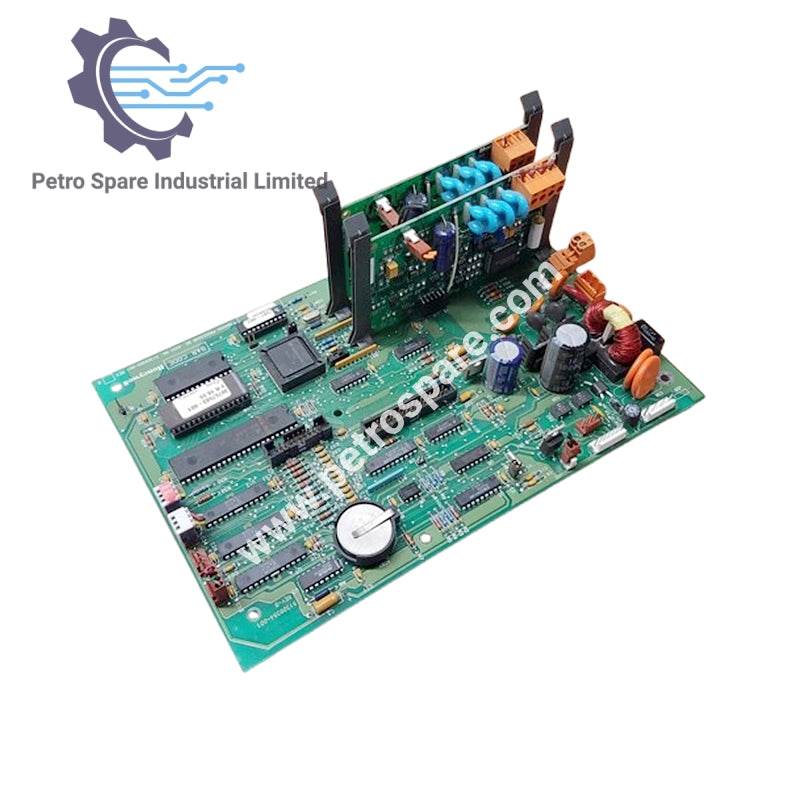

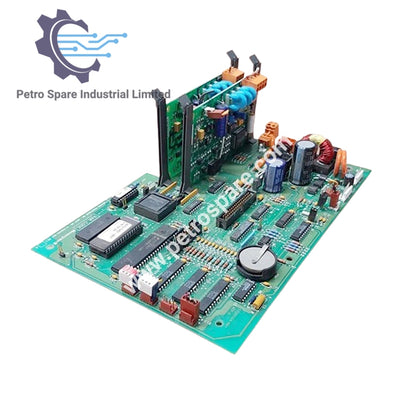

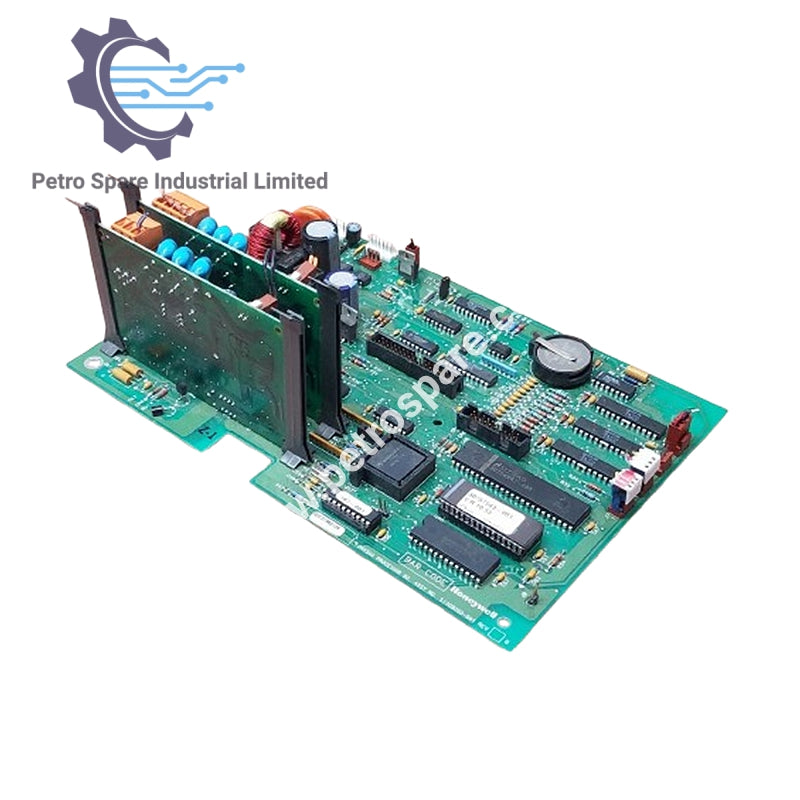

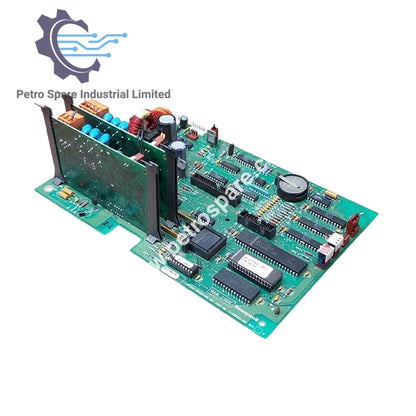

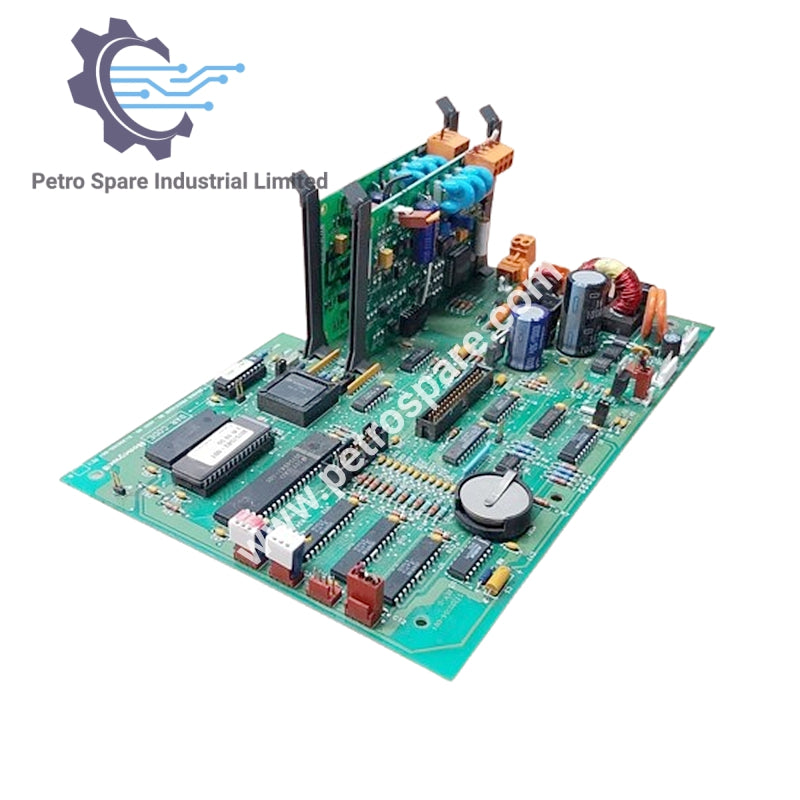

51309355-001 is a Honeywell processor board designed for DR4500 chart recorders, enabling embedded control of recording, display, and input processing.

Application

• System use: DR4500 circular chart recorder

• Function: Manages chart plotting, input acquisition, and recorder interface

• Channels supported: Up to 4 analog inputs

Electrical Data

• Processor type: Embedded microcontroller

• Memory: 128 MB RAM, 128 MB Flash

---
