1SAP111100R0270

Product Overview

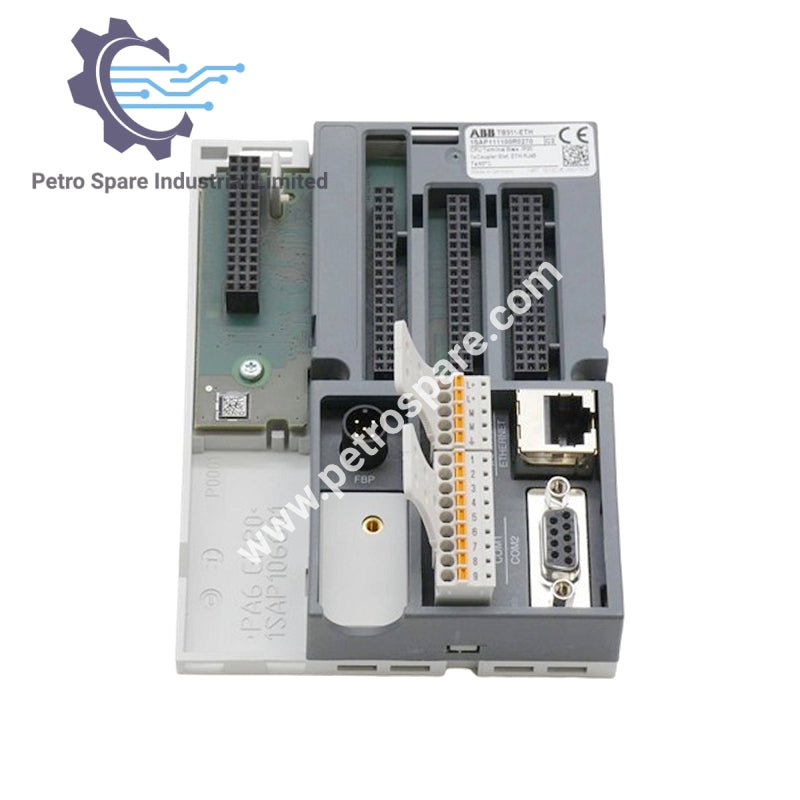

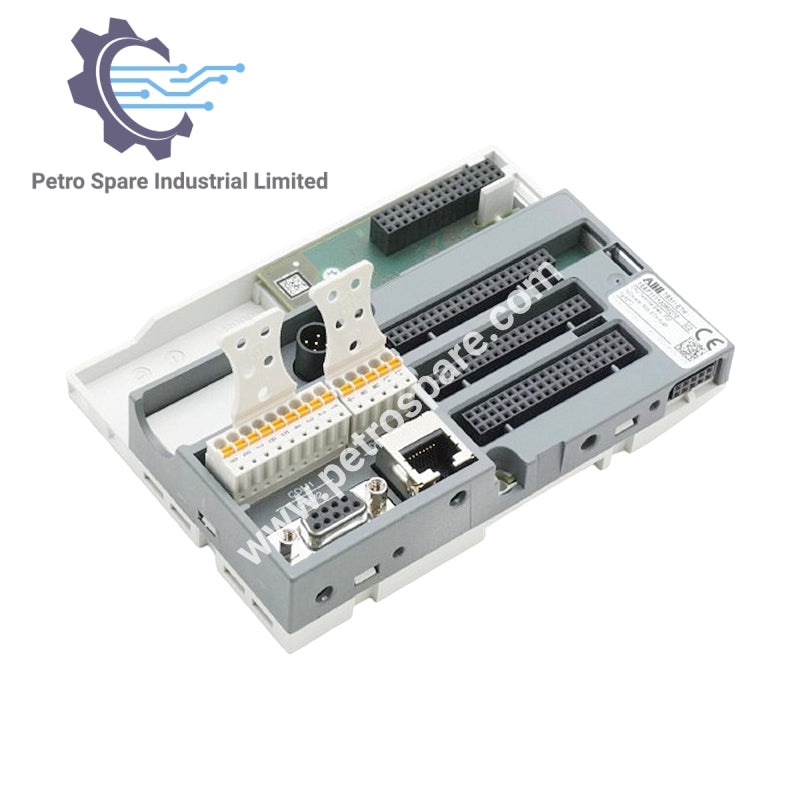

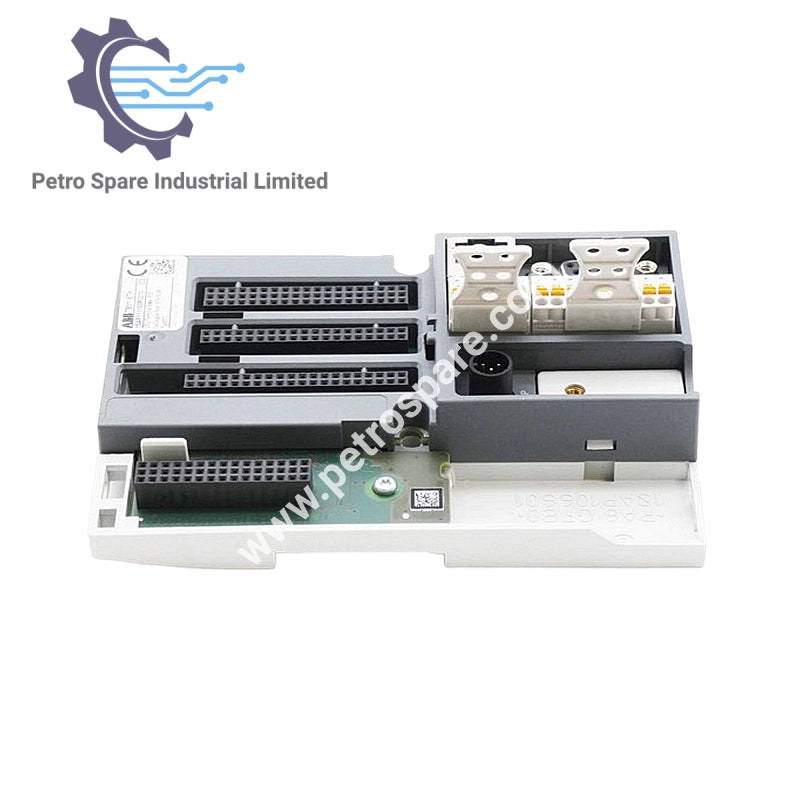

TB511-ETH 1SAP111100R0270 is an ABB AC500 V2 terminal base with one slot for communication modules, Ethernet interface, and dual RS232/RS485 serial interfaces.

Identification

• Product ID: 1SAP111100R0270

• Model: TB511-ETH

• Type: AC500 Terminal Base

• Manufacturer: ABB

Dimensions & Weight

• Height: 135 mm

• Width: 95.5 mm

• Depth/Length: 28 mm

• Weight: 0.159 kg

Electrical Data

• Supply voltage: 24 VDC

• Input voltage type: DC

• Degree of protection: IP20

Interfaces

• Communication interface: D-SUB / RJ45 / Terminals

• Slots: 1 slot for communication module

• Ethernet: Supported

• Serial interfaces: 2 (RS232 / RS485)

Environmental Data

• Operating temperature: 0–60 °C

• Storage temperature: –40 to +70 °C

---
