T8432

Overview

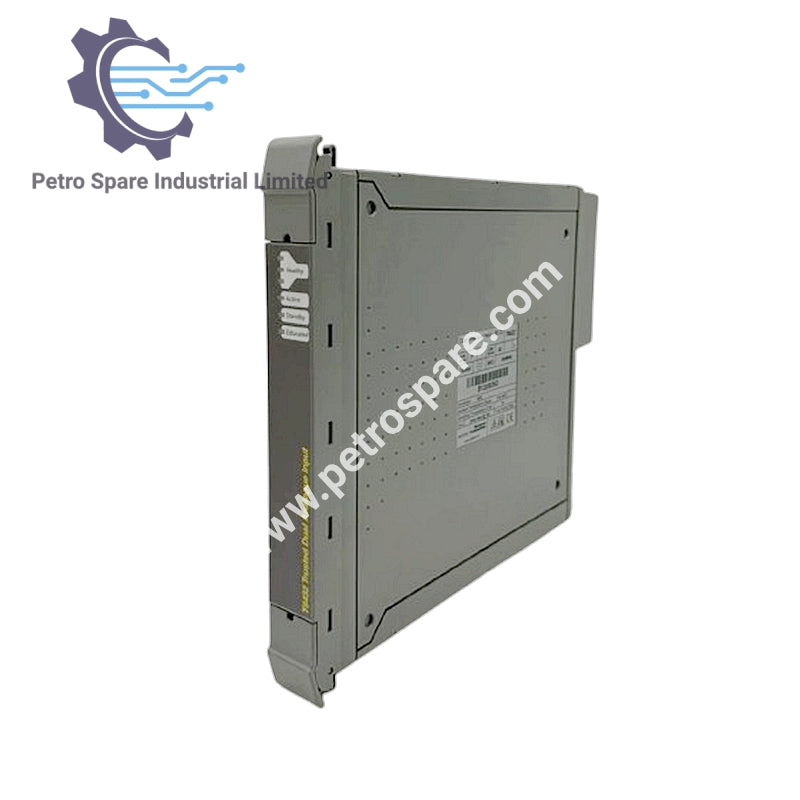

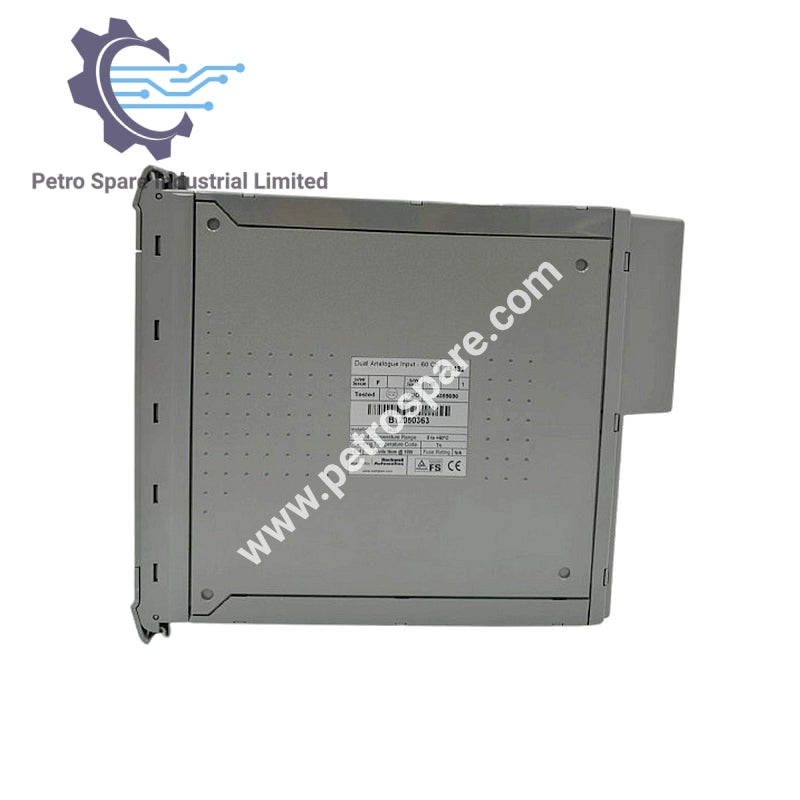

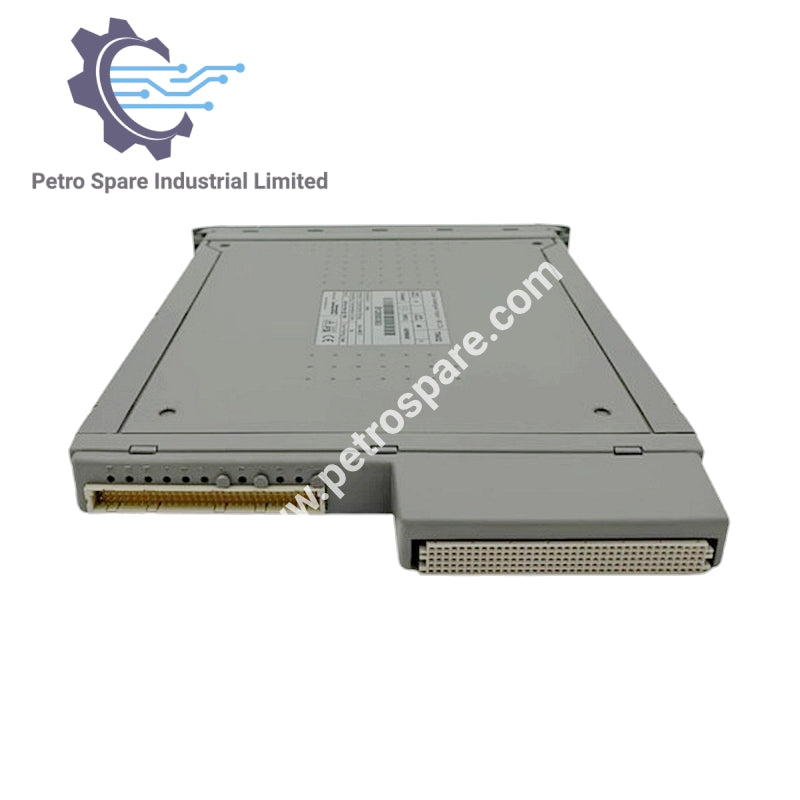

T8432 is an ICS Triplex Rockwell Trusted analog input module with 60 dual input circuits, designed to monitor voltage and current signals for high-reliability control systems.

Identification

• Product ID: T8432

• Model: Trusted Analog Input Module

• Type: Analog Input Module

• Manufacturer: ICS Triplex Rockwell

Channel & Signal Data

• Input circuits: 60 dual input circuits

• Input range (voltage): 0–6 V

• Input range (current): 0–22 mA via 250 Ω resistor

• Reference wiring: Zero volt reference wires linked across module

• Isolation: Between field and system; no isolation between channels

Electrical Data

• Loop types: Current sourcing/sinking, active/passive loops

• Measurement principle: Voltage measured relative to zero volt reference (loop current converted via precision resistor)

Comparison Note

• T8431: 40 triplicated input circuits

• T8432: 60 dual input circuits

---
