6ES7517-3AP00-0AB0

Overview

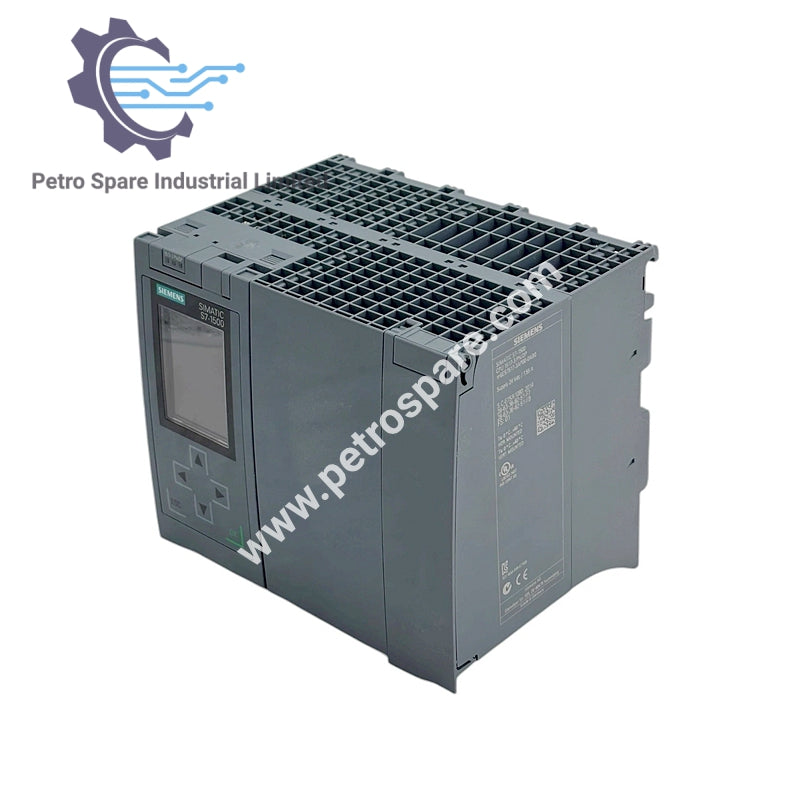

6ES7517-3AP00-0AB0 is a Siemens SIMATIC S7-1500 CPU 1517-3 PN/DP, FS11, firmware V3.1, supporting isochronous mode, SysLog, and advanced engineering with STEP 7 TIA Portal.

General Information

• Type designation: CPU 1517-3 PN/DP

• HW functional status: FS11

• Firmware version: V3.1

• FW update possible: Yes

Product Functions

• I&M data: I&M0–I&M3

• Isochronous mode: Distributed 250 µs, Central 1 ms

• SysLog: Yes

• Configuration control: Via dataset

Engineering

• STEP 7 TIA Portal: V19 (FW V3.1) or higher

• Backward compatibility: V13 Update 3 (FW V1.6) or higher

Display & Controls

• Screen diagonal: 6.1 cm

• Keys: 6

• Mode selector switch: 1

Power Supply

• Rated voltage (DC): 24 V

• Range: 19.2–28.8 V

• Reverse polarity protection: Yes

• Mains buffering: 5 ms stored energy, repeat rate ≥ 1/s

Input Current

• Rated consumption: 1.55 A

• Max. consumption: 1.9 A

• Inrush current: 1.9 A

• I²t: 0.4 A²·s

Dimensions & Weight

• Width: 175 mm

• Height: 147 mm

• Depth: 129 mm

• Weight: 1.929 kg

---
