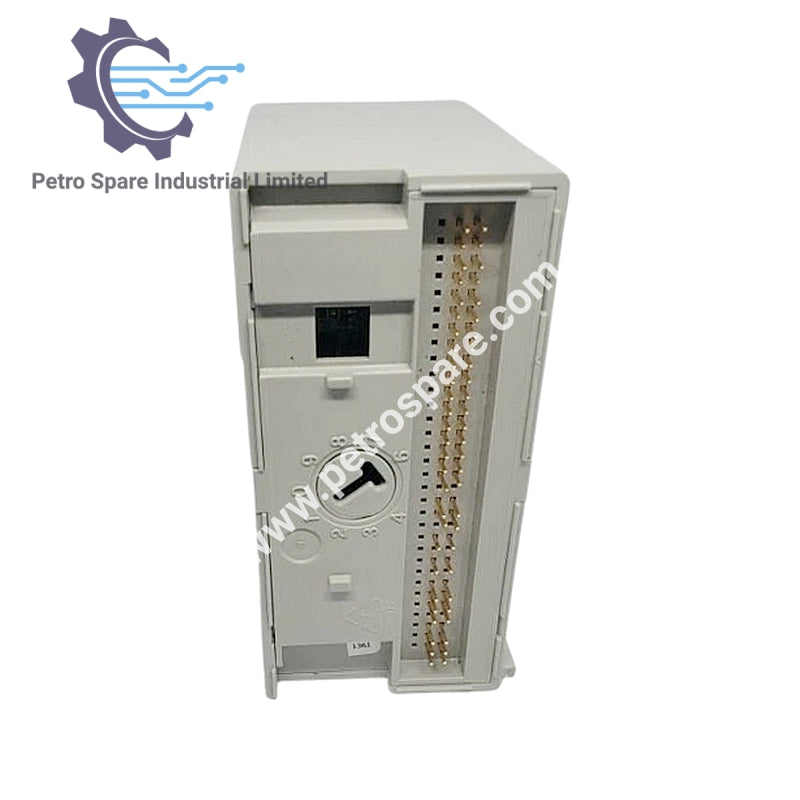

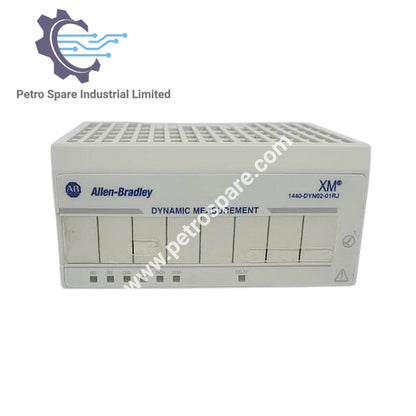

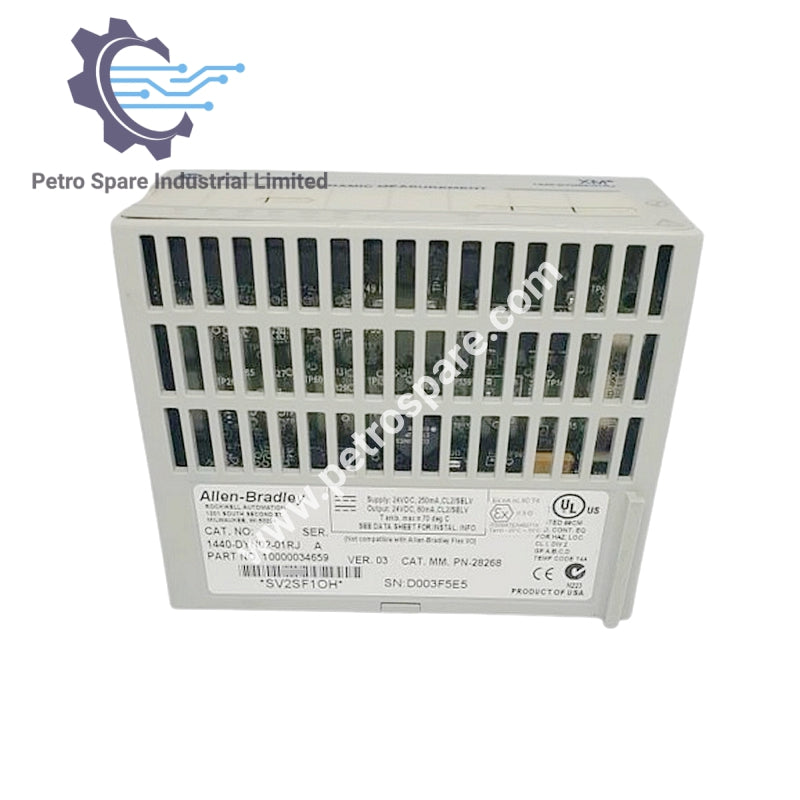

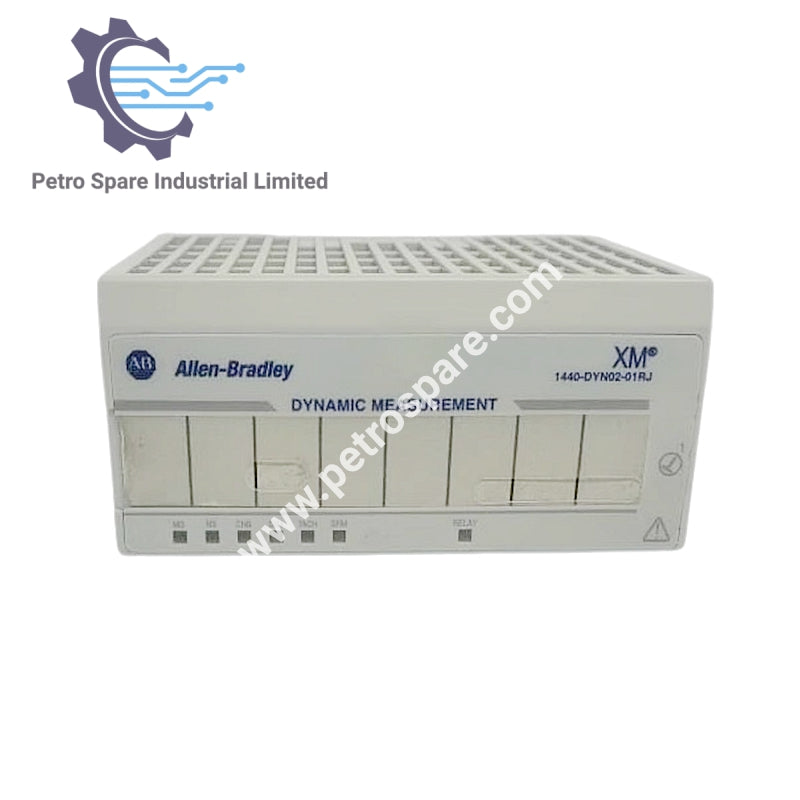

1440-DYN02-01RJ

Overview

1440-DYN02-01RJ is an Allen-Bradley XM standard dynamic measurement module designed for vibration and dynamic signal monitoring, with buffered outputs and tachometer input support.

Identification

• Product ID: 1440-DYN02-01RJ

• Model: XM Standard Dynamic Measurement Module

• Type: Dynamic Measurement Module

• Manufacturer: Allen-Bradley

Inputs

• Channels: 2 dynamic channel inputs

• Tachometer inputs: 1

• Supported transducers: IEPE accelerometers, eddy current probes (ECPs), voltage-based dynamic devices

• Transducer power: Constant voltage +24 VDC, –24 VDC, 60 mA

• Voltage ranges: +20 VDC, –10 to +10 VDC, 0 to +20 VDC

• Input impedance: Up to 15% from nominal

Outputs

• Buffer outputs: 1 per channel + tach channel

• Control output: 0 physical, 1 logical relay

Interface

• Network: XM-Net

---
